Reverse Osmosis

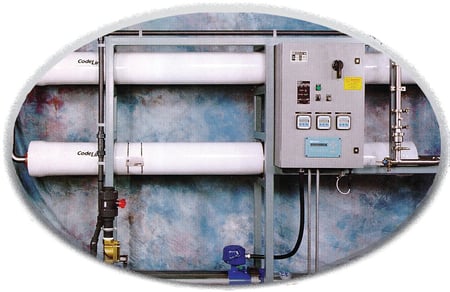

WES Industries offers a complete line of packaged RO systems.
- Conversion of HighTotal Dissolved Solids in
water to drinking water via energy efficient,
single-pass reverse osmosis technology.
(Seawater conversion units are also available.) - Compact pre-engineered units from 5000
to 1 million gallons per day capacities.
Larger volumes are available by using
multiple units or with WES custom-designed packages. - Automatic shutdown features protect
membranes, piping, and pumps from major faults.
Individual visual and audible alarms (optional)
simplify system monitoring.
- All controls and instrumentation
conveniently located for simple
operation and easy access for servicing. - High-efficiency centrifugal pumps, 304
Stainless Steel.(316 optional) . - Spiral wound and high-rejection membranes
are utilized. Alternative membranes are
available. - Full line of pre-treatment, post-treatment,
future expansion, and energy recovery
operations available for all applications.
(As options.)
Product Applications
- Drinking - For Private Homes, Work, Camps, Hotels, Resorts, and Municipalities.
- General Domestic - For Bathing, Cooking, Cleaning, Laundering, and Swimming Pools.
- Food and Beverage - For Restaurants
- Agriculture - For Irrigation, Hydroponic Gardening.
- Chemical industrial - For Process, Rinsing, Cooling, Solution Make-up, Boiler Feedwater.
- Construction - For Concrete.
- Clean-up.
- Landscaping.
- Bakeries.
- Breweries.
- Bottling.
SYSTEM SPECIFICATIONS
NOMINAL CAPACITY
Based on properly pretreated water of 500 PPM TDS at 7rF (25°C) and 10 psig product pressure. Capacity will vary with salinity, temperature, operating, and product pressure recoveries will vary with appropriate pretreatment.
AVERAGE POWER
Based on a high-pressure pump motor at maximum operational pressure.
OPERATING CONDITIONS
Feed Pressure: 40 psig (dynamic) min. ISO psig max.
Product Pressure: O psig min.140 psig max. Feed Temp: (at standard atmospheric conditions); TFC Spiral: 34°F (1°C) min./104°F (40°C) max. Feedwater Suspended Solids: Silt Density Index (SOl) less than five at the membrane. WES will select proper pretreatment after reviewing feedwater characteristics.
POWER REQUIREMENTS
230 Volt/3 Phase/60 Hz
460 Volt/3 Phase/60 Hz
ENVIRONMENTAL CONDITIONS
Protection against extreme temperatures
and direct exposure to sunlight 34 F (1 C
min./104°F (40°C) max. is required.
AVAILABLE OPTIONS
Expansion Capabilities Pretreatment/Post-treatment Equipment Feedwater pH Monitor or Control System Feedwater Pump Package
Spare Parts and Consumable Inventory
Alternate Elect. Voltages, Controls &
Ratings. Recycling of Waste.
Manufactured to meet all NSF, ASTM, ASME, and ANSI requirements.
